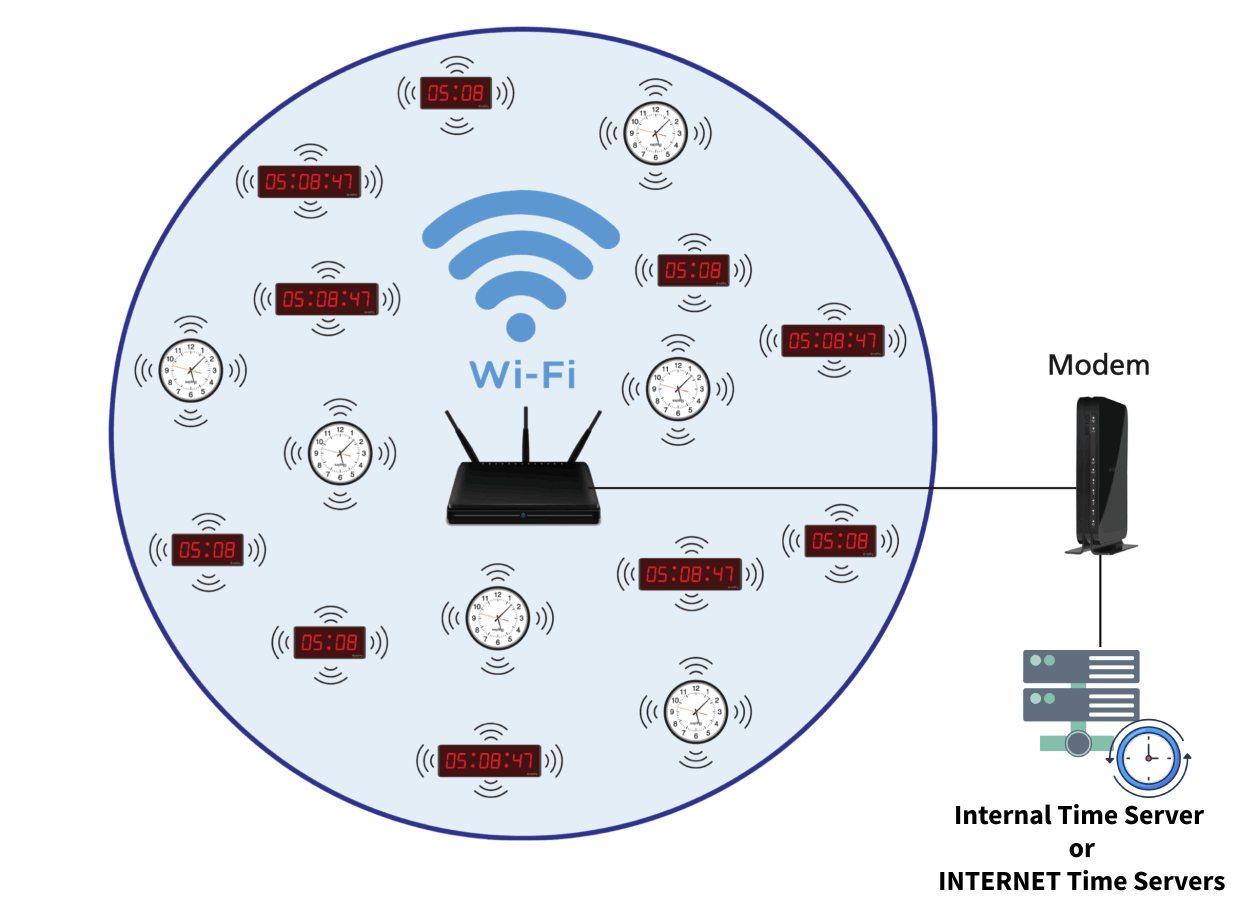

CSI NTP Wi-Fi Clock System Architecture

NTP Wi-Fi Clock System

 Eliminating the need for physical wiring between clocks, this system allows for effortless time synchronization over Wi-Fi from either an internet source or an in-house Time Server.
The setup is straightforward—power the clocks, connect to the network, set them, and the system is operational.

Wi-Fi Clocks provide the flexibility to synchronize with up to 10 NTP Time Servers, ensuring system redundancy and making a master clock optional. Even if all 10 servers temporarily fail to connect, the clock will continue to display the current time until at least one server resumes communication, making the system highly reliable.

This system is particularly advantageous for facilities with dispersed clocks or multi-building campuses, leveraging existing Wi-Fi infrastructure, eliminating the need for inter-clock wiring.

Each clock has a user-friendly web interface ensures efficient clock setting and control, offering diagnostic insights and troubleshooting capabilities. The inclusion of a FREE Network Clock Monitoring Software enhances supervisory capabilities, allowing for clock oversight and the configuration of alerts.

Our Advantages

Easy Wi-Fi installation

Easy Wireless Installation

Each clock simply requires a power source and a stable Wi-Fi connection, allowing it to synchronize with either your internal time server or an internet-based time server.
Built-in web interface

Built-in web user interface

Each clock has a web interface built right in, allowing the user to easily configure features in any devices (computer, tablet , mobile phones) such as 12/24 hour mode (digital clocks only), time zone offset, time source, network settings, Daylight Saving Time, etc.
Clock Monitoring Software

Clock Monitoring Software

Monitor the entire clock system and make system-wide changes using this simple PC program. This program will display all of the clocks that are present on the network and allow you to check on their status.
Energy efficient

Energy Efficient

Our NTP clocks are energy efficient, saving you electric consumption in the long run.
Master clock is not required

No Master Clock required

A master clock is optional. All clocks are capable to synchronize their time in your existing local NTP server or free internet time servers.
Time Server Synchronization Redundancy

Time Server Synchronization Redundancy

Store up to 5 internal or external NTP server addresses to ensure reliability in the event that one of the servers fails to respond/communicate.
International Standards Quality Compliant

International Quality Standards Compliant

All of our NTP clocks comply with international quality standards, guaranteeing reliability and durability. This results in an impressive Mean Time Between Failures (MTBF) of 60,000 to 75,000 hours (6.8 years to 8.5 years).
Multiple Clock Design Options

Multiple Clock Design Options

As NTP time synchronization is widely adopted, it is integrated into all of our partner clock models, offering you a variety of options to choose from.
